Guitar Amp Cabinet Plans For Sale (Jan 2023 Update)

Mod 102 guitar amp kit features: all tube design (solid-state diodes used only for full-wave rectification). 5w output power into 8 ohm. 1 channel vintage channel. controls: bass, treble and volume. vintage pilot lamp and screw-on jewel cover for power-on indication output impedance: 8 ohm tubes included: one 12ax7 (preamp), one el84 (jj electronic brand) hammond mfg 269ex power transformer and p-t31 single ended output transformer cathode biased class a power tube operation (no bias adjustment needed). point to point hand wiring using terminal strips. carbon film resistors metalized polyester coupling caps pre-punched steel chassis. assembled kit weight: 4.25 lbs. assembled kit dimensions: 10" width x 6" depth x 5-&frac 18;" height mod 102 instructional features: detailed, easy to follow instructions include high resolution computer drawings for parts list and every step of assembly.

The hughes & kettner tubemeister 112 cabinet is ready to give your amplifier some serious punch. loaded with a single 12" celestion vintage 30 speaker, the tubemeister 112 is perfect for any of the tubemeister amplifier heads. the specially designed bass reflex cabinet delivers a full-range sound with a beefy bottom end. many players love 12" speakers for their burly, aggressive sound. and because it's got a parallel output, you can link it with a 10" cabinet (if your amp allows) for a sweet combination of definition and girth. lightweight, big sound, and durably built, the hughes & kettner tubemeister 112 is ready to rock.

No matter how good your amp is, the speaker cabinet must also be top quality to have a great tone. the peavey 212-c has 18mm plywood construction, 1 celestion vintage 30 speaker and 1 celestion g12-t 75 speaker. the g12-t 75 has enhanced high and low end while the vintage 30 is renowned for its midrange, so the 2 speakers complement each other! the back of the cabinet is convertible for changing the cabinet to an open back configuration. a stereo/mongo input cup, rubber feet and metal corners complete the package. great quality, great look, great tone and great value!

The dirty little devil that shaped guitar history with mysteriously fat saturated tone, this little monster makes it easy to achieve seismic distortion.this amp's 5e3 circuit is an enigma. why do the controls on the channel you're not using make your tone so great? some say it's caused by defects in the circuit design, others dive deep into the nuances of the engineering … but whether it was a happy accident or pure genius, this amp is one of the finest examples of vintage tone available anywhere, at any price.stewmac has lovingly recreated this timeless amplifier in our '59 tweed 15w amp kit. this is one of our icon kits: loving reproductions of vintage classics.if this project sounds hard, don't worry. the '59 tweed is a perfect place to start. it comes with all the parts you need to complete this project in just a few evenings.details:the cabinet interiors are genuine 3/4" north american pi…

Two of the world s bestselling 4×12 cabinets, famed for their excellent sound. these cabinets are designed to deliver a big sound for live performances. both cabinets have an authentic 60 s design and pack plenty of power with 300w. key features excellent tone both cabinets are all-rounders and compliment a variety of effects. the 1960a is brighter than the 1960b which has a thicker low-end sound. versatility this cabinet can switch between mono and stereo with two mono options for extra amp matching capability.

These rubber feet may be used for new projects or as replacements for lost or damaged feet on amps, speaker cabinets of other applications.

Loaded with two celestion g12h30 speakers plus 2 x 15" celestion fullback speakers the friedman amplification 412/15 checkered closed-back guitar speaker cabinet is ready to unleash sonic fury. any guitar will sound huge through this cab and if you play a seven- or eight-string guitar you may shift the earth's axis once you start palm muting. it's got a checkered finish that makes it the perfect match for friedman's butterslax bill kelliher signature amp.

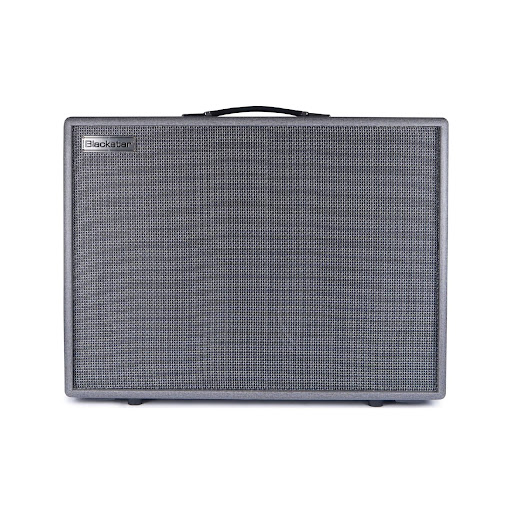

The perfect match for your blackstar silverline deluxe amplifier head, visually and tonally, is the blackstar silverline 2 x 12" stereo speaker cab — perfectly sized and beautifully adorned in matching silver "faux-lex" covering with silver grille cloth and coordinating black handle. inside you'll find a pair of celestion v-type 12" speakers, which possess a balanced mix of vintage and modern characteristics and just the right amount of cut to help your parts — clean, crunch, or lead — find their mark. stereo and mono operation gives this cab the versatility to pair with any amp in your arsenal. meanwhile, a set of rubber feet keep the silverline 2 x 12" cabinet decoupled from the floor for cleaner bass and better note separation. for your silverline deluxe or any other stereo guitar head, sweetwater recommends the blackstar silverline 2 x 12" speaker cabinet.

Speaker cabinet design is mysterious to most people, but it doesn't have to be – especially when it comes to speakers for musical instruments. cabinet evolution is described culminating in kevin's own designs built by london power, based on 20+ years of experience and input from expert speaker designers. resonant and non-resonant cabinets are explored, along with the choice for building materials, finishes, woodworking techniques, installing grill cloth, and the use of wheels and handles. driver selection and mixing is detailed, covering driver impedance, power ratings and wiring. dare to design bad tone right out of your life.spiral bound, 77 pages, 1 lb, 5.5" x 8.5".

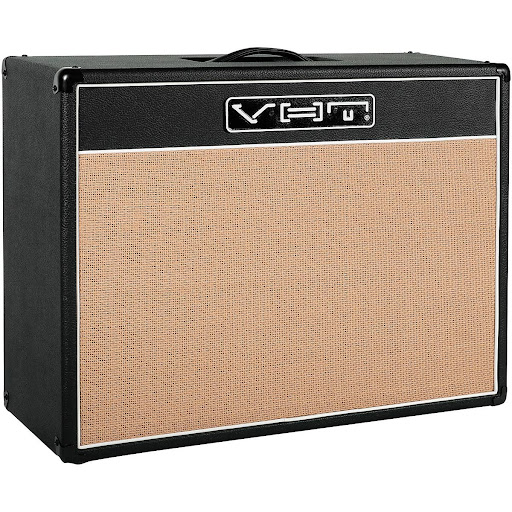

Vhts d-series cabinets are matching companions to the best-selling d-fifty amplifier. these powerful d-series cabinets can bring out the best from your d-fifty or enhance the tone of your existing rig.the d-series open-back 2×12 (av-d-212vht) is constructed from light-weight mahogany plywood in an open-back cabinet design. its loaded with two 12" vht chromeback 16-ohm speakers. it has a mono/stereo switch (with isolated ground paths in stereo mode, for no ground issues) and a high-quality, durable, recessed leather handle. its a great choice for clean and mildly overdriven tones and the open-back design fills the room with lively multi-dimensional tone. the mono/stereo switch, with isolated grounds, adds to its versatility. also available in an empty variant (av-d-212e). the d-series 2×12 e (empty) cabinet has the same design and construction as our loaded open-back 2×12 cabinet, including a mono/stereo switch. add your own speakers for an affordable way to get the tone you desire.

The custom-made hughes & kettner rock – driver classic 60 housed in a dove-tailed birch-ply enclosure will communicate your triamp mark 3's musical energy – loud and clear, with a mighty bottom-end wallop, lashings of rich and creamy mids and sparkling highs. – impedance: 8 ohm – power handling: 240 watts – speaker: 4 x 12" rock – driver classic 60dimensions: 750 mm x 760 mm x 360 mm – weight: 41.3 kg

The randall rg8 "mini cab" is a perfect match for the rg13. this cab pumps 35w through a single 8" speaker, making it convenient in power and size.power handling: 35wspeaker: 1×8" randall rs8-35-8impedance: 8 ohms (mono)dimensions: 11.3" x 11.6" x 7.5"weight: 14.3 lb.

This is the perfect kit for both a first project as well as for the seasoned builder. this kit, which includes everything you'll need to complete the amp, can be constructed in three to four evenings with astounding results. with turret board, point-to-point construction, quality components, and just a touch of american upgrading, this kit is ready to become your sound. for a detailed list of what is included, download the manual below. this great kit can be customized by you with upgraded parts. or it can be ordered without the cabinet and / or speaker. let us give you a quote.

Here is the perfect partner for your morgan amp, the morgan 1×12 open back extension cabinet. inspired by the classic british amps of the '60s it features a fixed baffle design and stunning twilight finish. with a celestion g12m-65 creamback speaker it delivers 75w of power with ease,it has a punchy high end and a nice, tight low end. with an h magnet you get additional body and focus, it adds depth to single notes and delivers incredible definition. as with all morgan cabinets, oversized 12-gauge speaker wire is soldered between the speaker and terminal, assuring you capture every ounce of valuable tone. handwired in the usa, the morgan 1×12 open back extension cabinet will blow you away!

When you want your blackstar ht venue series amp head to be at its best, pair it with the blackstar htv-412 mkii 4 x 12 cabinet to deliver singing highs, clear mids, and whacking lows. packing 320 watts of power driven by four celestion speakers, this cabinet can handle even other powerful amp heads. the angled front helps you hear yourself better on stage or in the studio. htv mkii speaker cabinets all feature interlocked "finger joint" construction and heavy duty wiring to withstand the life on the road. the gray woven grill cloth also gives the cab its classic look.

Includes – orange amps micro dark mt20 20w amp head, 2a power supply, 10 foot pig hog black woven instrument cable 1/4"-1/4" straight gold-plated connectors & liquid audio polishing cloth. solid state hybrid design w/ valves – the micro dark sports a new high gain circuit which blends valve and solid state technology. the preamp uses a single ecc83 (12ax7) valve and produces a huge range of usable tones with warm cleans, smooth overdrive and immense, crushing distortion. its robustly designed solid state output section means the micro dark can be paired with any 8-16 ohm cabinet. offers a buffered fx loop function – the micro dark’s fully buffered, low impedance loop allows for any number of effects and cables to be patched in without sacrificing tone. it’s incredibly transparent, meaning your pedal arsenal will perform at its absolute peak. emulates orange's 4×12" cabinet sounds – a popular feature on our crush series amps, the headphone output includes our cabsim circuitry which faithfully emulates the sound of a mic’d orange 4×12′′ cabinet loaded with our flagship voice of the world speakers. use headphones for silent practice or connect to a mixer/recording console to capture huge, authentic orange tones in the studio. works with 8 to 16 ohm cabinets – the 12ax7/ecc83 valve/solid-state hybrid design produces a wide range of usable tones ideal for any 8-16 ohm cabinet. this amp head is compatible with electric guitars. exclusively from liquid audio, this bundle comes with the orange amps micro dark mt20 20w amp head, 2a power supply, pig hog 10 foot black woven instrument cable 1/4"-1/4" straight gold-plated connectors for guitars and amps & liquid audio polishing cloth – all you need to get started! the micro dark shares the same intuitive shape control combined with a new ecc83 (12ax7)-driven high gain preamp section, yielding screaming dirty tones that make a mockery of its miniature frame. like its bigger brothers, however, the micro dark’s smoky black chassis and simple layout actually disguise its cunning versatility. of course, there’s plenty of gain on tap to satisfy even the most discerning devotee of distortion, but this little beast is by no means just a one-trick metal monster! beneath the menacing exterior you’ll find a rich and diverse palette of classy and confident tones. from squeaky clean to brash and mean – whatever your style – you’re gonna love this thing. other features include a transparent, fully-buffered effects loop and a headphone output with our popular cabsim circuitry. with the optional ppc108 cabinet, the micro is an ideal practice rig… plug into something a little larger, though, and you might find your new secret weapon in the studio!

The laney lfr cabinet is a full frequency, full range, powered cabinet, designed to deliver the varied tones of a digital guitar set up where it matters the most – to your audience. digital guitar rigs offer the player an un-paralleled degree of choice when it comes to their rig set up. in a digital world, virtually anything is possible. completely different digital guitar rigs allow players to have access to an astounding array of truly amazing sounding amplifiers, cabinets and effects. until recently harnessing the power of your digital guitar rig live has proven difficult. the reason being amplifying a digital guitar rig live requires something completely different from a traditional guitar amp setup. full range flat response to make a digital guitar set up work live you need something which faithfully recreates your studio sound, live and loud without adding any additional unwanted tonal content. step forward the new laney lfr-112. the laney lfr cabinet is a full frequency, full range, powered cabinet, designed to deliver the varied tones of a digital guitar set up where it matters the most to your audience.

When paired with the diavlo series metal-geared heads, the rd112-v30 cabinet produces an outrageous tone that sounds absolutely massive. the randall rd112-v30 speaker cabinet features a single iconic 12" celestion vintage 30 speaker rated at 65 watts. while the ruggedly constructed cabinet box is square, the v30 speaker is mounted to an angled baffle to help project your sound and highlight more high frequencies.

For use with amplifier heads, provides vintage british sound, 100w, 4 x 12" celestion greenback 25 speakers, 18-ply baltic birch cabinet, slanted construction, stereo or mono operation, 8 ohms stereo, 16 ohms mono, rests on sturdy casters. designed to be paired with amplifier heads the peavey 430a is a 4×12 cabinet. it provides four 12 celestion greenback 25 speakers giving you 100w of power. with two 1/4 inputs on the rear of the cab you can use it in mono or in stereo. please note that in stereo mode you should only route 8-ohm amplifier signals into either channel. for conventional mono use it will handle 16-ohm loads. this is a slanted cabinet with an 18-ply baltic birch construction. matched with the proper amplifier this cabinet can engender a vintage british sound. it rests on sturdy casters so that you can easily roll it from gig to gig.

Blackstar htv-112 guitar cab the blackstar htv 112 mkii open-back 1 x 12" extension cabinet gives you the british-voiced tone you've been looking for. no matter what electric guitar amplifier you plug in, you'll love the sound of this guitar cab's balanced sound across the spectrum, making it a great choice for any style you play. that's all thanks to the blackstar htv 112 mkii's real celestion speaker. built tough and ready for the demands of the road, the blackstar htv 112 mkii 1 x 12" extension cabinet is a powerful addition to your rig.
